Model No.: JT-UVDTF-60R
Type: 24-inch UV DTF Printer
Price: Inquiry to negotiate
MOQ: 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Lead Time: 5-15 Days
Warranty: 13 months (Ink system, printheads and ink capping are not covered)
After-sale Service: Online technology support, repair service
International Shipping: DHL, FedEx, By Air, By Sea

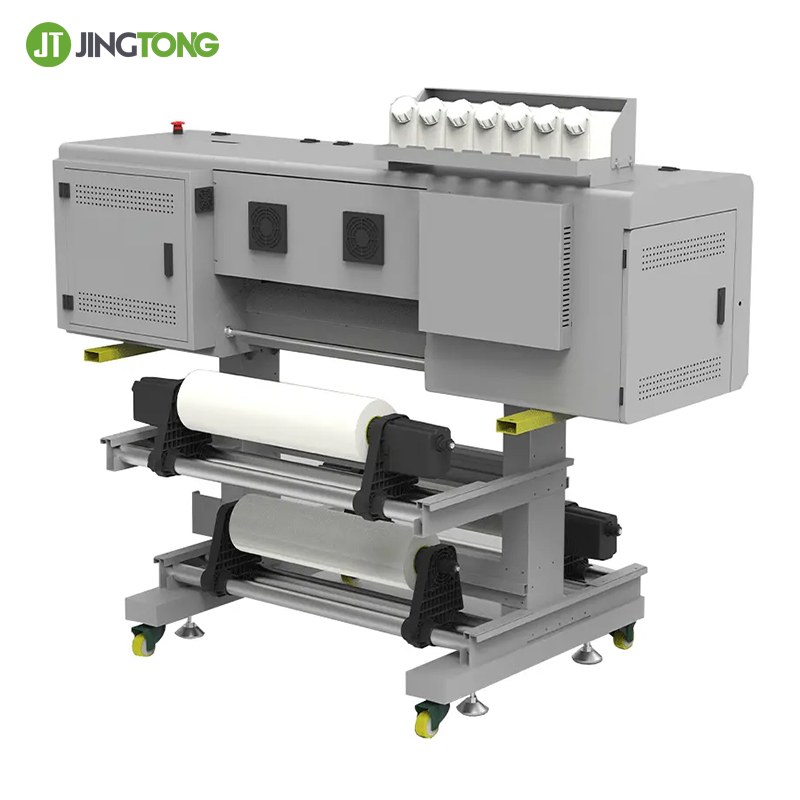

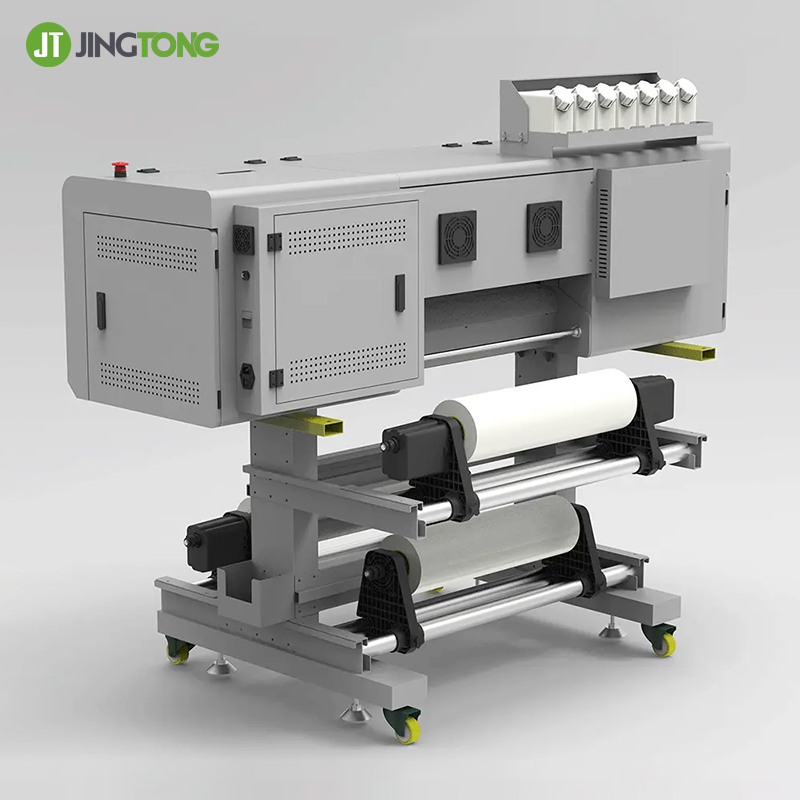

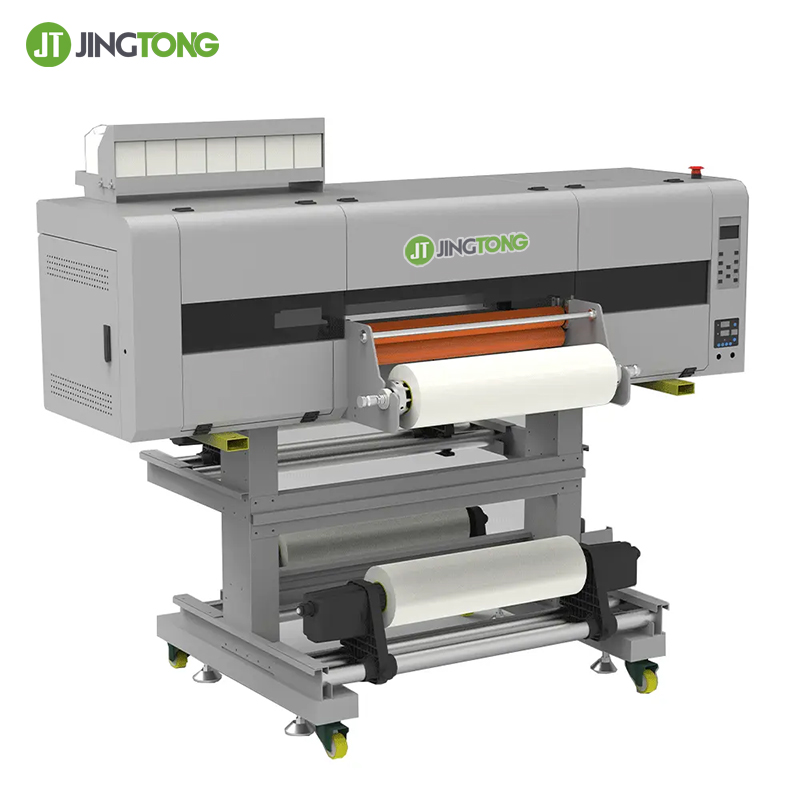

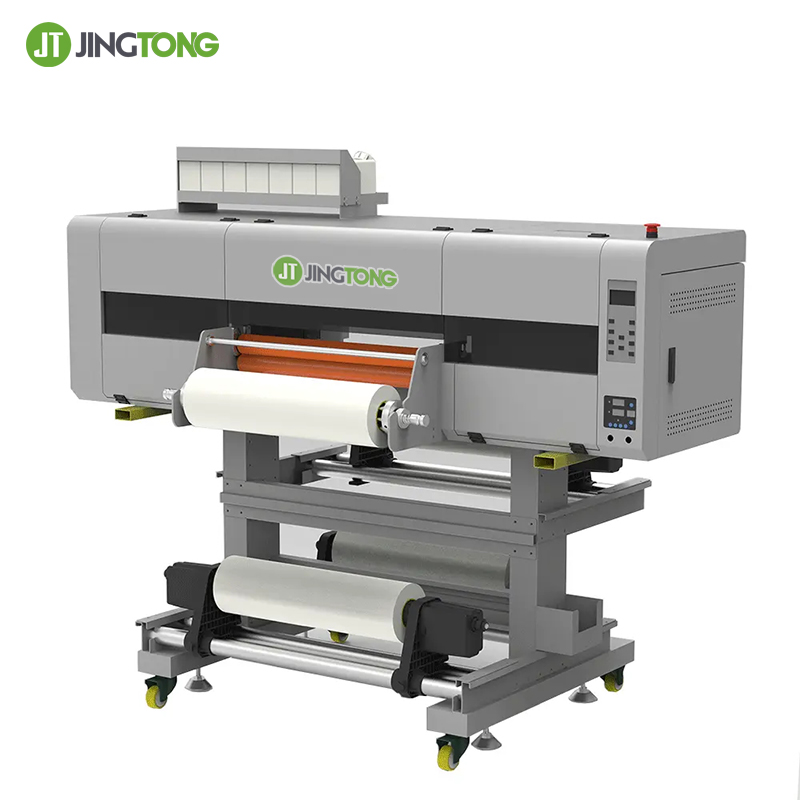

A1 Size UV DTF Printers All in One Roll to Roll Sticker Label Printing Machine with Laminator
The Jingtong Roll To Roll UV DTF Printer allows one person to print individual crystal labels. 3 printing nozzles to achieve white + color + varnish multi-layer printing, support hot stamping gold and silver, can achieve high brightness and high luxury customized effect.
Larger and wider roll-to-roll crystal labeling printing, efficient printing, and excellent transfer on irregular objects.
Technical Highlights:
Print Head: Epson I3200-U1 print heads.
Print Size: 600mm.
Ink Type: UV curing ink.
Print Speed: 6-12 m2/h.
Features
- Cost-effective DTF Roll printer
- Intense white and colors
- White ink circulation/stirring
- All automatic printing
- Quality serve motor for best possible color calibration, free of dislocation problem
Benefits
- Enable More Profit
- Get Unique and Special Printing
- Improve Your Printing Business
- Step Ahead of Your Rivals
- Achieve Peace of Mind with Easy Print
Specification
| Basic information | Printer name | Jingtong A1 UV DTF Printer |
| Model name | JT-UVDTF-60R | |
| Printing Size | Max. Width 600mm, Length no limit | |
| Printing height adjustable | 0~6mm | |
| Rewinding Type | Automatic rewinding detecting | |
| Film Feeding | Automatic detector for tension release | |
| Film Take up | Automatic detector for take up | |

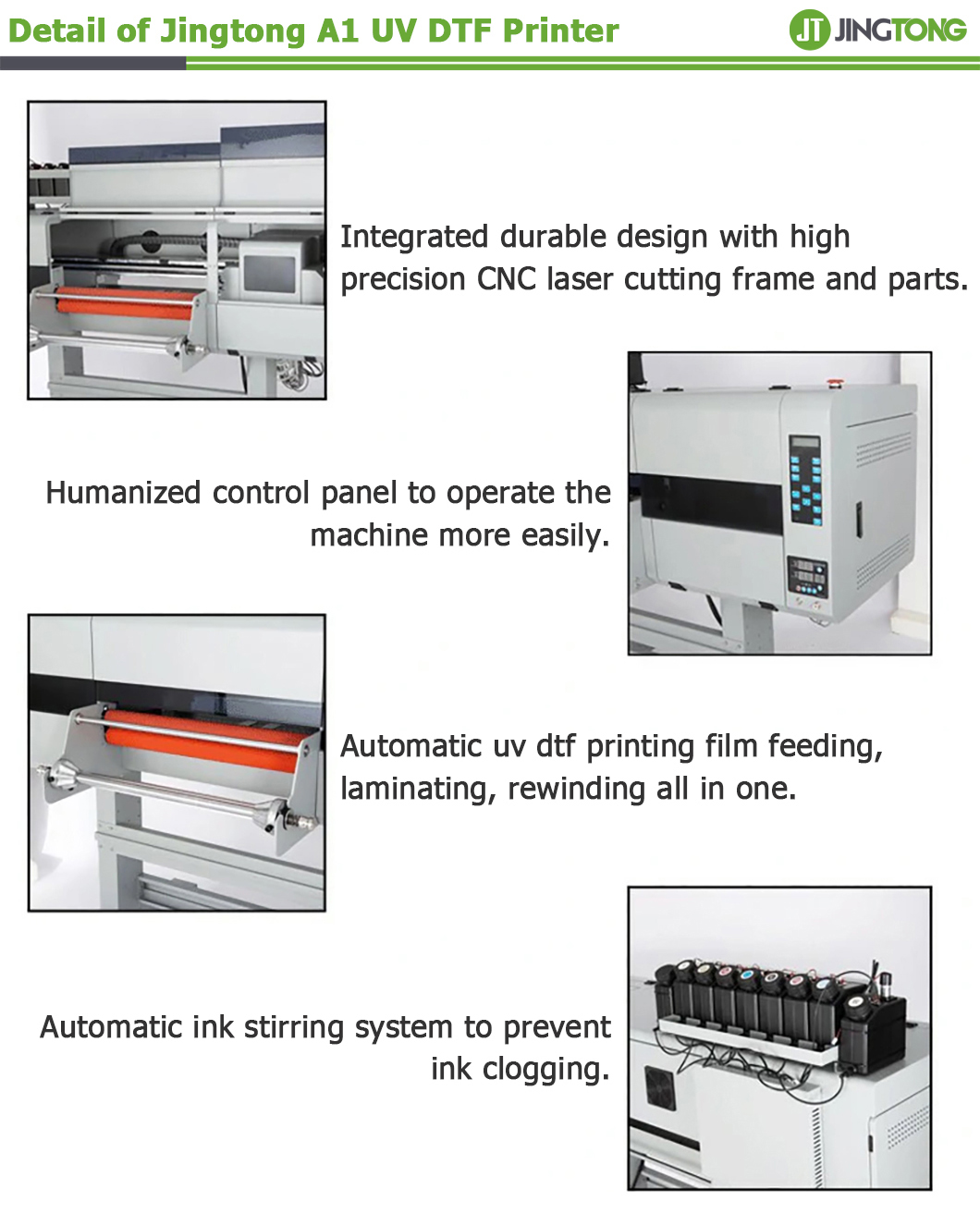

| Construction | Heavy duty Frame with strengthened beam | |

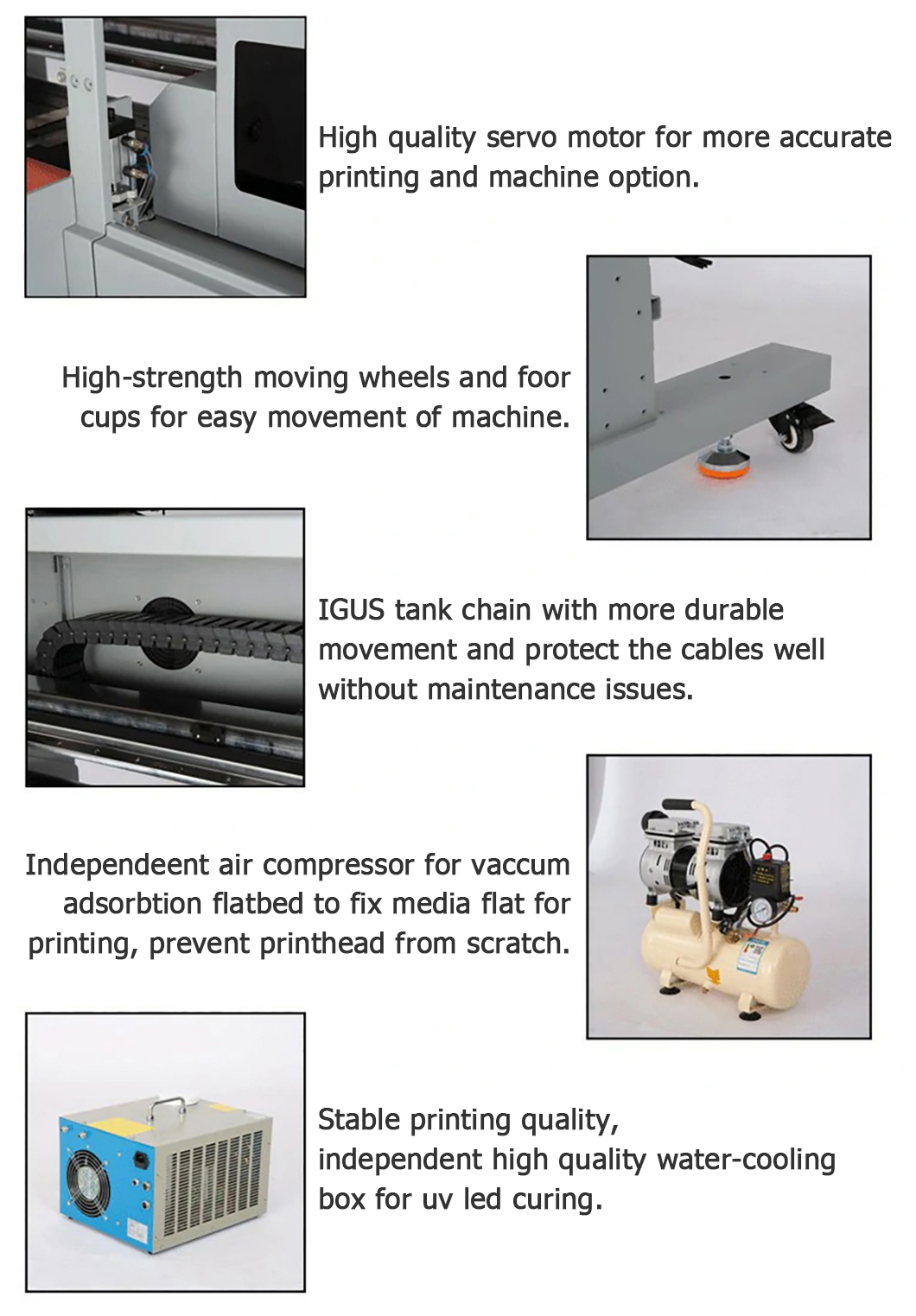

| Driving mode | HIWIN linear rail + servo otor+ball screw+IGUS Drag chain | |
| Working platform | High quality Roller + Anodized aluminum table | |
| Cooling system | Water-cooling system with indepent cooling box | |
| Printhead | Technology | Advanced micro piezo inkjet technology |
| Print head | Epson I3200-u1 printhead | |
| Printhead cleaning | Automatic cleaning | |
| Ink drop Volume | 3.5PL | |
| Inkjet distance | < 2mm | |
| Resolution | 720dpi/ 1080dpi/ 1440dpi | |
| Printing mode | Uni-direction/Bi-dirction | |
| Printhead life | 6-12 months depending on the maintenance and using circumstance | |
| Print Speed | 720*720DPI; 4 Pass 6.5-10m2/H | |
| 720*1080DPI; 6 Pass 5.8-7m2/H | ||
| 720*1440DPI; 8 Pass 8m2/H | ||
| Ink system | Ink type | UV curing ink |
| Color Configuration | CMYK,White, Varnish | |
| Ink tank | 1000 ML * 5 Colors | |
| Ink supply | Continual ink supply system (CISS) | |
| White ink stirring system | Automatic ink stirring system & circulation system | |
| Working condition | Temperature | 20ºC~ 28ºC (68ºF~82.4ºF), Relative Humidity 35%-65% |
| Printer Voltage | AC220V/110V±10,50HZ~60HZ | |
| Plug available | Chinese Plug/US Plug/UK Plug/Europe Plug (According to customer's demands) | |

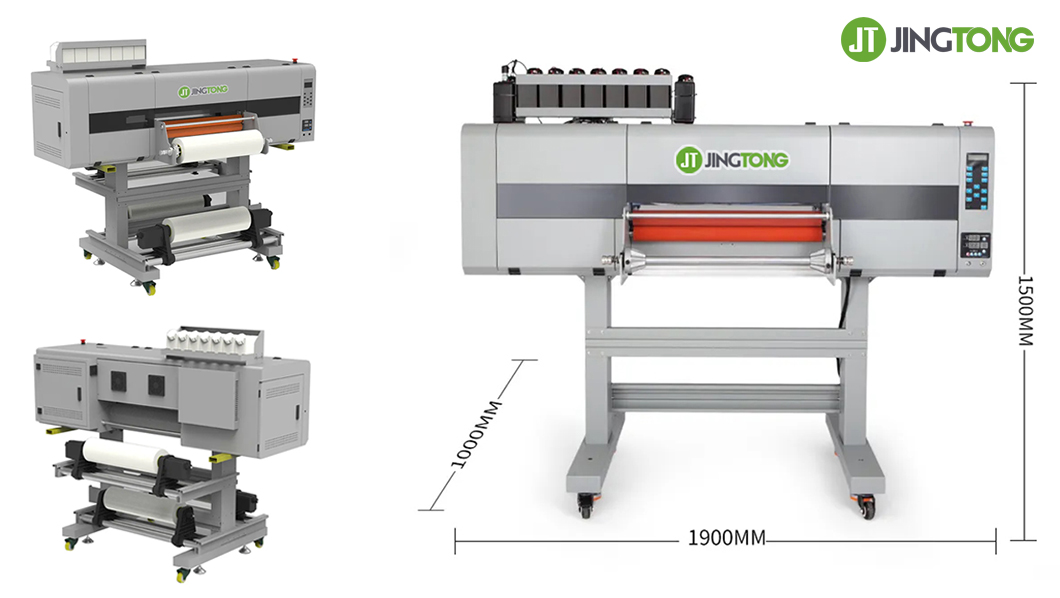

| Size & weight | Printer size(L*W*H) | 1900*880*1600mm, 242kg |
| Printer package (L*W*H) | 1980*1325*820mm, 300kg | |
| Package type | Inside foam protection, outside Ply-wood steel frame package | |
| software | Software type | Maintop/Riprint |
| File Format | PNG/JPG/TIFF/PDF | |
| Language | Chinese/English | |
| Computer config. recommended | Operating system | Windows XP, Windows® 7/10 (64 bit) Recommend |
| CPU | Intel® Core™ i5, 2.5 GHz or more | |
| HDD | Install space 1 GB or more; Working space 100 GB | |
| Processor prefered | INTEL AMD | |
| Storage | RAM>8G | |
| Print Interface | USB3.0 high speed Gigabit Ethernet port |
FAQ
Q: Can a UV printer print on any object?
A: UV printers can print on many different substrates, including wood, plastic, ceramic, metal, leather, PET, acrylic, glass, etc. (Due to the limited adhesion of uv inks, smooth surfaces such as mirrors, glass, etc. need to be coated layer).
Q: Is UV printing scratch-resistant? Is it washable?
A: With sublistar's UV ink, the finished product is waterproof and fade-resistant, and the printed surface is scratch-resistant and durable.
Q: Does UV printing need a heat press?
A: UV printing uses specialized UV inks. UV LEDs instead of heat cure the ink onto the print media during printing. No need for a heat press
Q: What can UV flatbed printers print?
A: The UV flatbed machine can print on almost any flat material such as mobile phone cases, medals, packaging boxes, leather, wood, ceramics, promotional items, pvc, etc. With the jig, it can also be printed on curved surfaces, such as cups, golf balls, etc.
Q: What is the difference between UV printer and UV DTF printer?

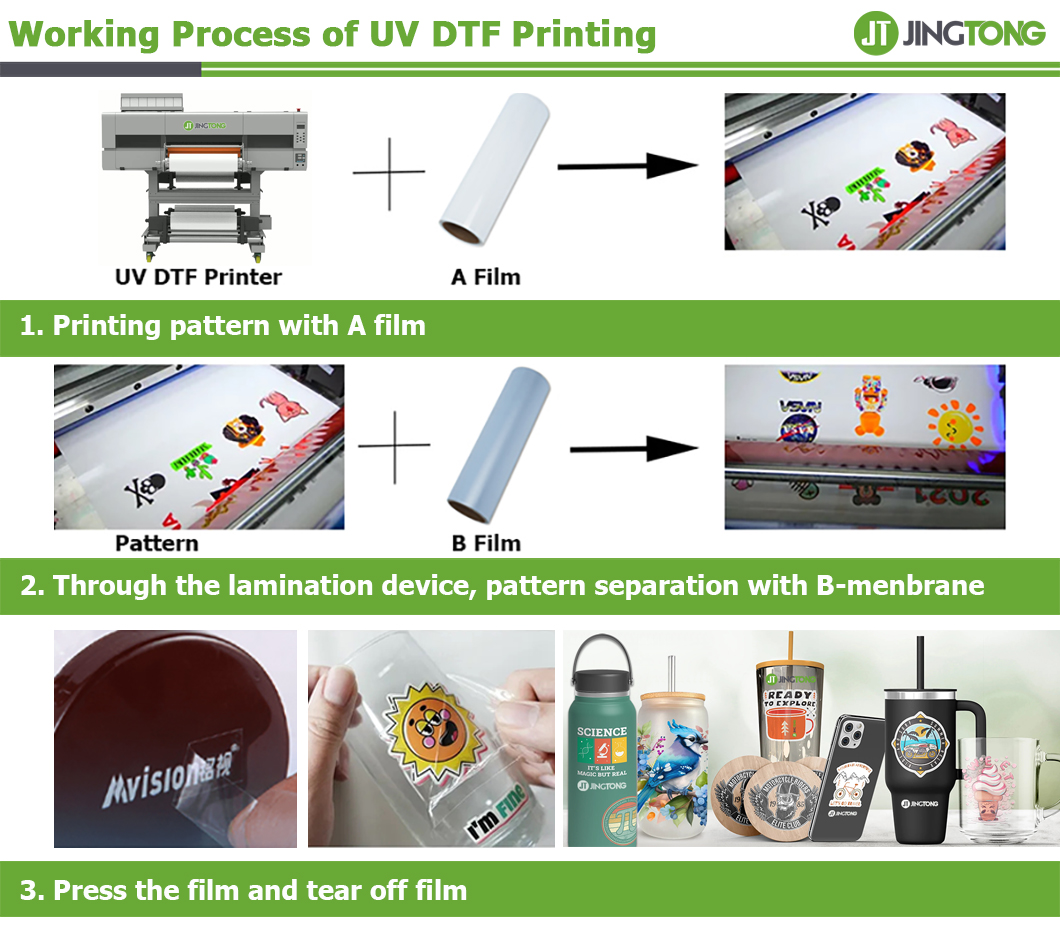

A: UV printers print on substrates directly while UV DTF printers print on AB films first, and then attach to the substrates. UV DTF printer is extended from UV printer to make up for the shortcomings of UV printing.
