High Resolution Multifunctional 6090 UV Printer for Acrylic, Metal, Wood & Custom Products

High Resolution Multifunctional 6090 UV Printer for Acrylic, Metal, Wood & Custom Products

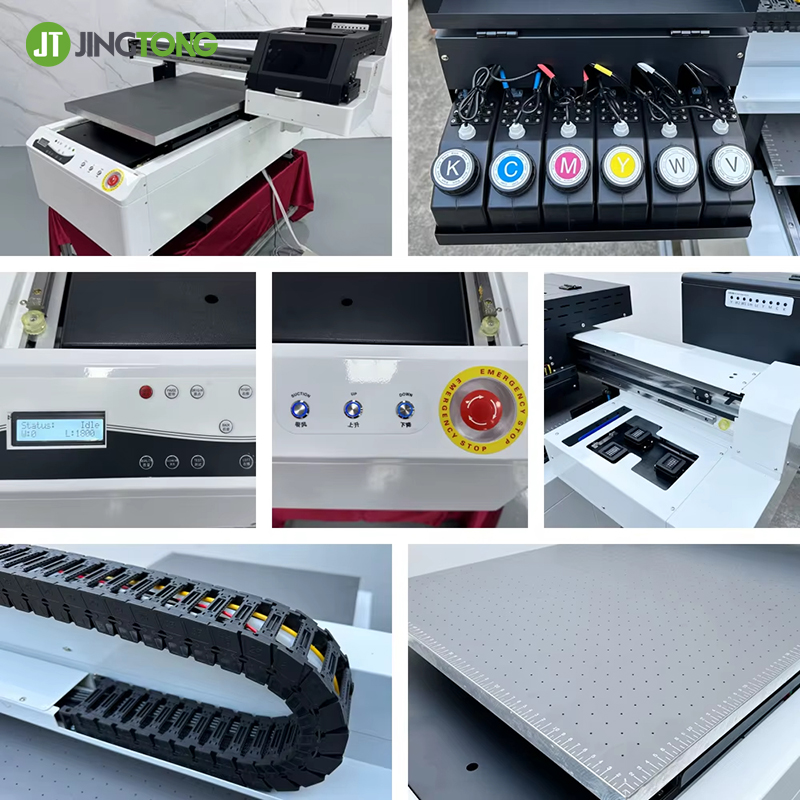

The JT-6090 UV-M UV Flatbed Printer is designed for versatile direct-to-object printing on a wide range of products. With a 600×900mm flatbed, Epson XP600, i1600-U1 or i3200-U1 printheads, UV LED curing and CMYK+White+Varnish capability, it produces detailed and durable prints on acrylic, metal, wood, glass, plastic, ceramic and more.

The Jingtong 6090 UV Printer can also do UVDTF Printing solutions, and print 3d embossed and glossy logos on Curved & uneven & large items, let’s get started with JT-6090 UV-M!

Technical Highlights:

Print Head: 2-3 * Epson XP600/i1600/i3200 Printhead

Max Print Size: 600mm*900mm

Max Print Speed: 1.5-8 m2/h

Ink Type: ECO-UV Curing Ink

Print Mode: C, M,Y, K+W+Varnish / C, M,Y, K+LC+LM+W+Varnish

Product Highlights

- Print Varnish and 3D Relief Effects

- Electric Fixture, Support 360° Rotation Printing

- 180mm Maximum Printing Thickness

- 600×900mm Large Printing Area

- 2–3 Epson XP600 / i1600-U1 / i3200-U1

- CMYK + White + Varnish Printing

- Up to 8 m²/h Printing Speed

- Optional Vision Positioning System

Specification

Features

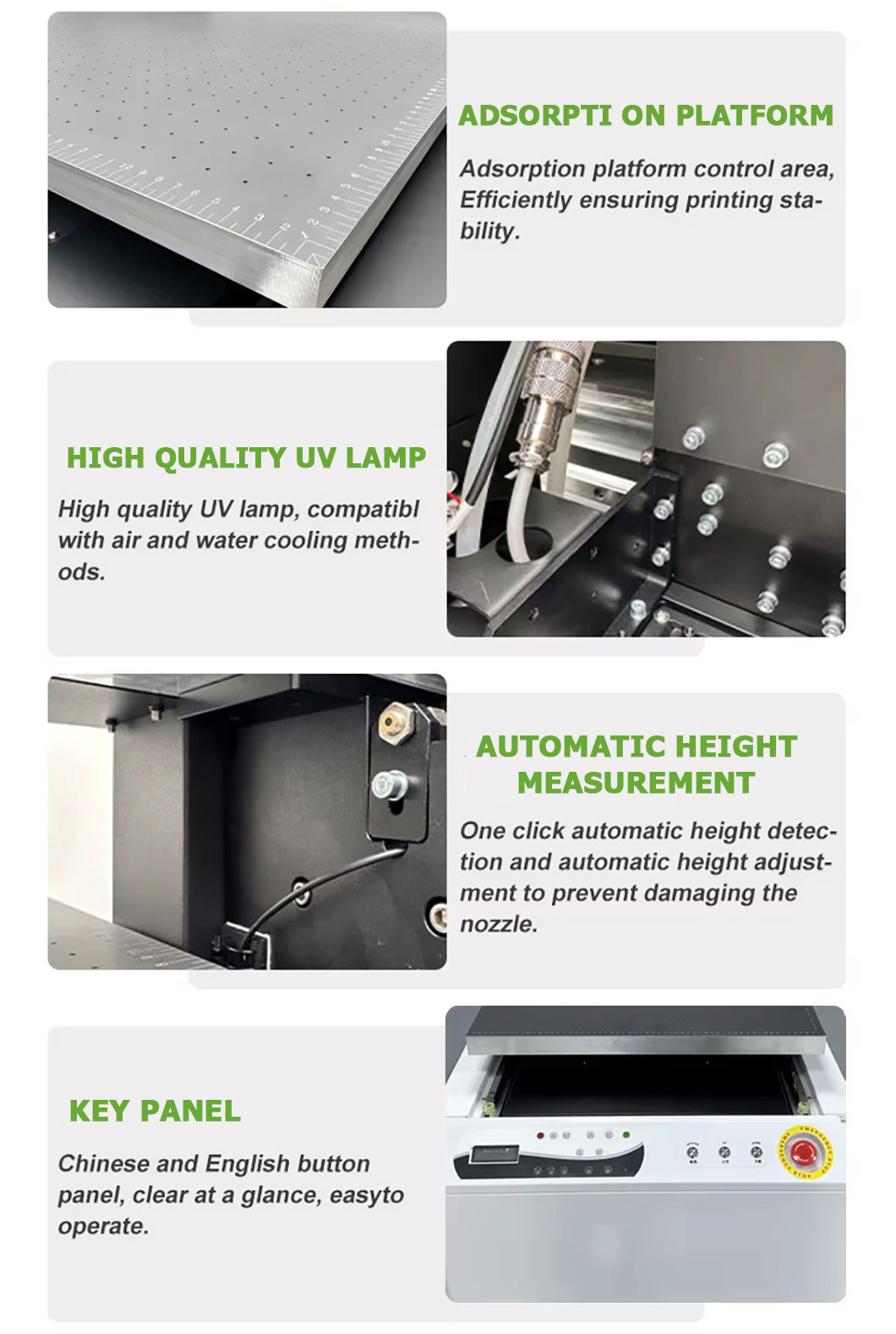

- High-Resolution Printout - Print precision up to 720*2400 dpi, the image quality is delicate, high ink drop printing can be realized, the jetting force is strong, and the performance is stable.

- Automatic Lifting Ink Capping Station - Driven by a motor, the position of the sealing head is precisely controlled, and the nozzle is intelligently protected from external damage.

- High-Precision Vacuum Suction Platform - Adsorption platform made of high-strength aluminum alloy plate, the turbo fan under the platform absorbs air through the holes to fix the material.

- Print Heads Anti-Collision System - Print heads are equipped with an anti-collision sensing device to protect the print heads and print items from being scratched.

- Independent Ink Ejection Device - Supports timing ink jetting, effectively prevents ink from solidifying in the ink system and prevents nozzles from clogging.

- Siphon Ink Supply System - The ink supply is smooth and stable without splashing ink droplets, ensuring the perfect output for printing jobs.

- UV Lamp Protective Cover - Emergency stop when opening the cover during work, Protect eyes from UV light.

- Friendly Software Interface - Including calibration, the operation is provided with detailed instructions, newbie friendly.

- Engineer Settings Open - Meet the customization and personalized printing settings of professionals.

Technical Details

Vision Positioning System

Optional Vision Positioning for Easy Alignment

The optional camera-based positioning system automatically detects reference points or the actual position of the product before printing. It helps place graphics accurately on pre-cut, irregular or multiple items, making batch customization easier and reducing manual alignment work.

Applications of JT-6090 UV Flatbed Printer

The 6090 UV printer can be used for phone cases, acrylic signs, metal plates, wooden products, glass panels, ceramic tiles, leather goods, promotional items and personalized gifts. The optional rotary system expands printing to bottles, mugs, tumblers and other cylindrical objects.

FAQ - 6090 UV Printer

Q1: What can a 6090 UV printer print on?

A: It can directly print on acrylic, glass, metal, wood, plastic, ceramic, leather, phone cases, tiles and many other printable surfaces.

Q2: Is the JT-6090 suitable for phone case printing?

A: Yes. The flatbed format is suitable for customized phone cases and other small products, especially for personalized and batch printing.

Q3: Can it print on dark materials?

A: Yes. The White Ink function allows graphics to be printed on dark, transparent or colored substrates.

Q4: What is the purpose of varnish ink?

A: Varnish can add gloss, highlights and raised decorative effects, helping enhance the visual appearance of selected areas.

Q5: Can I choose between XP600, i1600-U1 and i3200-U1?

A: Yes. The JT-6090 supports these three Epson printhead options, with 2–3 printheads depending on the selected configuration.

Q6: Can it print bottles or tumblers?

A: Yes. An optional rotary device allows the machine to print on cylindrical products such as bottles, mugs and tumblers.

Q7: Does it require manual positioning before every print?

A: Standard flatbed printing uses material positioning on the vacuum table. With the optional Vision Positioning System, the camera can detect the product position and assist with automatic artwork alignment.

Q8: Is UV ink immediately dry after printing?

A: Yes. The UV LED curing system cures the UV ink during printing, allowing the finished surface to be handled immediately after printing.
