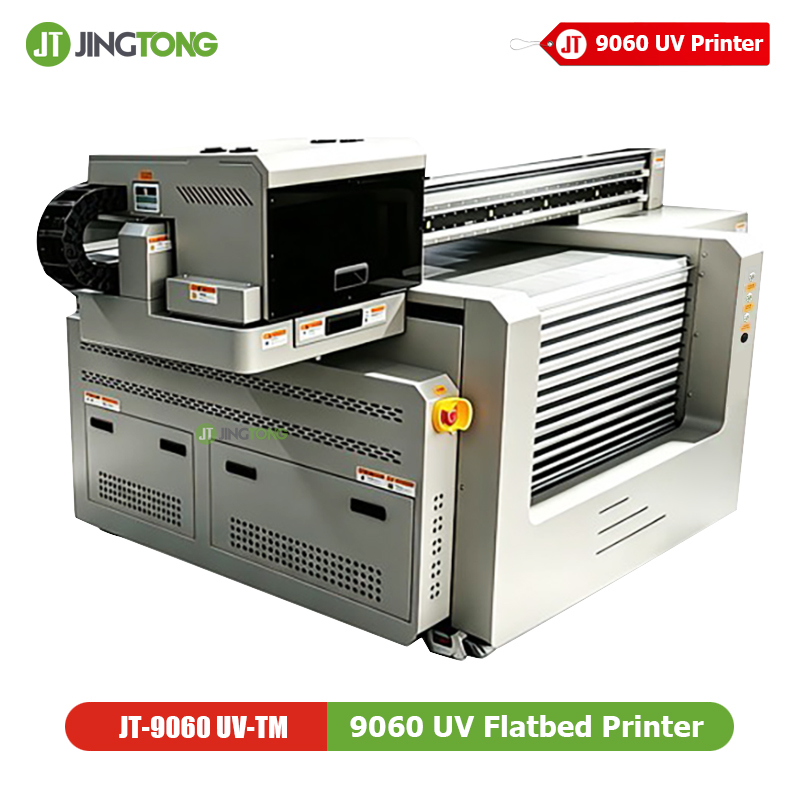

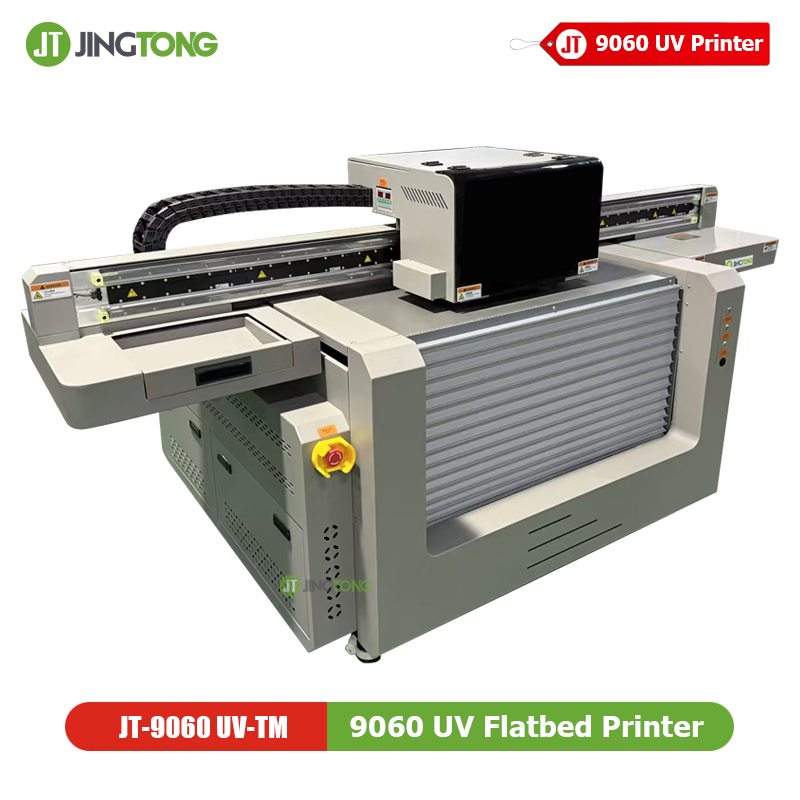

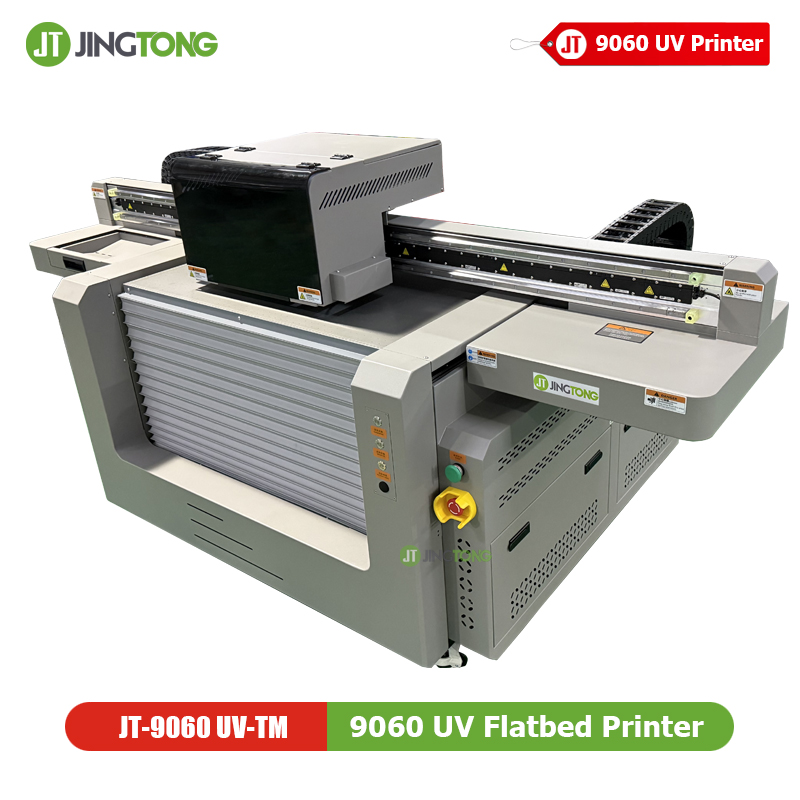

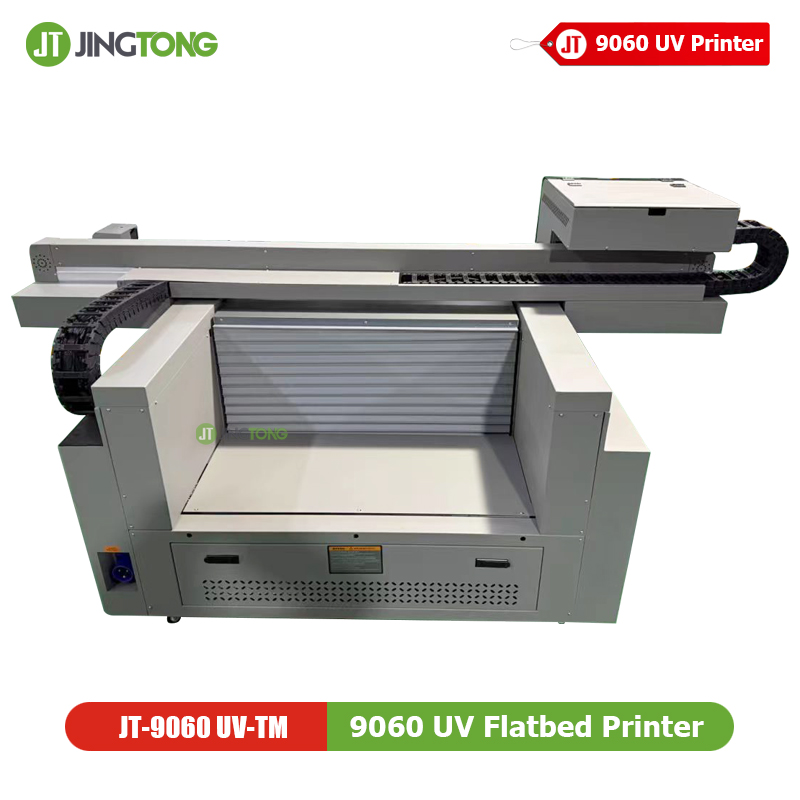

Professional 400mm High-Clearance Industrial 9060 UV Flatbed Printer with CCD AI Vision Positioning System
Industrial UV Printing for Larger and More Demanding Applications
The JT-9060 UV-TM is built for businesses that require greater flexibility than a conventional UV flatbed printer can offer. With a 900 × 600 mm print area and an exceptional 400 mm maximum media height, it easily handles oversized, thick, and irregular-shaped products while maintaining outstanding print quality and production stability.
Powered by Epson industrial printheads, a magnetic levitation linear servo system, THK precision guide rails, and CMYK + White + Varnish printing technology, the JT-9060 UV-TM produces vibrant colors, durable graphics, and premium embossed effects on a wide range of rigid materials. It is an ideal solution for packaging, advertising, industrial decoration, personalized products, and commercial manufacturing.
Technical Highlights:
Print Head: 3pcs * Epson i1600-U1/i3200-U1 Printheads
Max Print Size: 900mm*600mm
Max Print Speed: 3-12 m2/h
Ink Type: ECO-UV Curing Ink
Print Mode: C, M,Y, K+W+Varnish / C, M,Y, K+LC+LM+W+Varnish
Opportunities & Applications
Product Highlight
- 400mm High-Clearance Printing Capability
The JT-9060 UV-TM features an impressive 400mm (15.7”) printing height, enabling direct printing on oversized, thick, and irregular-shaped products beyond the capability of standard UV flatbed printers.
- Magnetic Levitation Linear Servo Motion System
Equipped with an advanced magnetic levitation linear servo motor, the printer delivers smoother movement, higher positioning accuracy, faster response, and improved durability for stable industrial production.
- THK Precision Guide Rail Structure
Featuring dual THK silent linear guide rails and dual Y-axis lead screws, the JT-9060 UV-TM ensures excellent mechanical stability, accurate positioning, and consistent printing performance over long-term operation.
- Flexible Epson Industrial Printhead Configuration
Supports 1-3 Epson industrial printheads, including XP600, i1600-U1, and i3200-U1 options, allowing flexible configurations based on different requirements for speed, resolution, and production capacity.
- CMYK + White + Varnish Multi-Layer Printing
The advanced UV printing system supports CMYK, White Ink, and Varnish layers to produce vibrant colors, high-gloss finishes, spot varnish effects, and embossed 3D textures on various substrates.
- Water-Cooled UV LED Curing System
Equipped with four water-cooled UV LED lamps, the system provides efficient ink curing, stable temperature control, and extended service life for continuous commercial printing.
- Optional Vision Positioning System
The optional camera-based positioning system automatically detects product locations and adjusts printing positions, reducing manual setup time and improving accuracy for customized products and batch production.
Specification
Model | JT-9060 UV-TM | JINGTONG 9060 UV Flatbed Printer |
Print Head | 3pcs* Epson i3200-U1 Printhead |
Printing Size | 900*600mm |
Max Print Speed | Up to 8m²/h |
Printing Accuracy | Up to 2880 dpi |
Print Mode | CMYK+W | CMYK+W+V | CMYK+LcLm+W+V |
Print Head Cleaning | Automatic |
Ink Type | UV ink |
Platform Height Adjustable | 400 mm (15.7 inch) |
Print Material | Acrylic, glass, stainless steel, mobile phone cases, ceramic tiles, KT boards, wooden boards, aluminum-plastic boards |
Ink Cartridge Type | Intelligent induction ink shortage alarm cartridge |
UV Curing System | 4 Water-Cooled UV LED Lamps |
White lnk Stirring Function | Yes |
Motion System | Magnetic Levitation Linear Servo Motor |
Guide Rail System | THK Silent Linear Guide Rails |
Platform Type | Vacuum Adsorption Printing Bed |
Platform Suction | Yes |
Ink Supply System | Bulk Ink Supply with Negative Pressure Control |
Rotary Shaft Device | Optional |
Maximum Media Weight | Heavy-duty industrial loading capacity |
Printing Mode | Single Pass / Multi-layer Printing |
Print Interface | Gigabit Network |
Standard warranty cover | 1 Years |
Working Environment | Temperature 16–38 °C / Humidity 35–65% RH |
Power Supply | AC 110 / 220 V, Single Phase, 50/60 Hz |
Software | Riprint / MainTop / Photo Print |
Operating System | Win7 / Win10 / Win11 |
Machine size/weight | Approx. 2250 × 1500 × 1300 mm/500kg |
Package size/weight | Approx. 2450 × 1500 × 1350 mm/750kg |
Technical Details

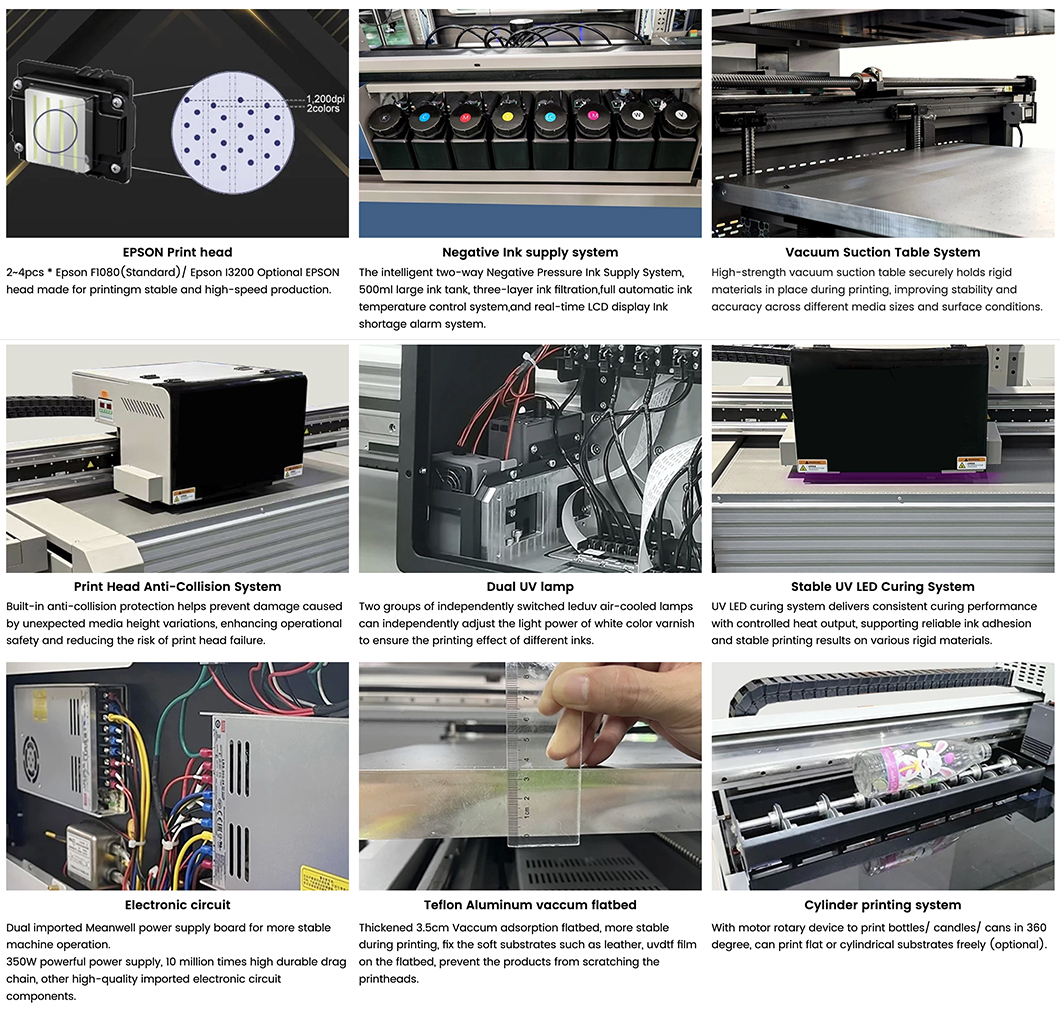

Features
• 900 × 600mm printing area for various rigid materials and customized products.
• 400mm maximum printing height for large and three-dimensional objects.
• Full steel industrial frame for excellent stability and durability.
• Magnetic levitation linear servo motor for precise and smooth movement.
• Dual THK silent guide rails and dual Y-axis lead screws for accurate positioning.
• Supports 1-3 Epson XP600 / i1600-U1 / i3200-U1 printheads.
• CMYK + White + Varnish printing for premium visual effects.
• Multi-layer printing capability for embossed 3D texture effects.
• Industrial vacuum platform securely holds materials during printing.
• Water-cooled UV LED curing system for stable and efficient curing.
• Intelligent negative-pressure ink supply system for continuous operation.
• Compatible with professional RIP software and supports AI, PDF, PSD, TIFF, PNG, JPG formats.
Optional Smart Vision Positioning for Faster and More Accurate Production
The optional Vision Positioning System uses camera recognition technology to automatically detect product positions and optimize printing paths, reducing manual setup time and improving accuracy for customized products, irregular-shaped items, and batch production.

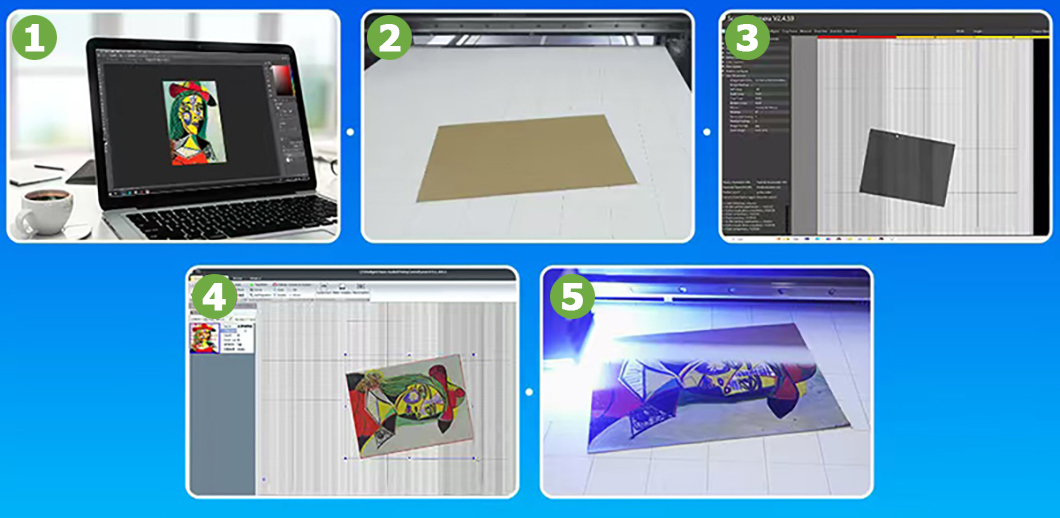

How Vision Positioning Works
1. Design Preparation
Import the artwork into the RIP software and prepare the print file for visual positioning.
2. Material Placement
Place the material freely on the printing table without strict alignment requirements.
3. Camera Recognition
The vision system captures reference points on the material and identifies its actual position.
4. Automatic Alignment
The software automatically adjusts the print position based on visual feedback.
5. Accurate UV Printing
Printing is completed with improved alignment accuracy and reduced positioning errors.
Applications of 9060 UV Flatbed Printer (JT-9060 UV-TM)
The JT-9060 UV-TM Industrial UV Flatbed Printer is widely used for customized product decoration, packaging printing, advertising production, industrial identification, and premium manufacturing applications. With its 400mm high-clearance design and ability to print directly on different rigid materials, it is suitable for luggage, gift boxes, acrylic displays, glass products, wooden crafts, metal panels, industrial components, promotional products, signage, and customized consumer goods. It provides an ideal solution for advertising companies, packaging manufacturers, gift suppliers, product decorators, and industrial manufacturers looking to expand their UV printing capabilities.
FAQ – 9060 UV Flatbed Printer
Q1. What makes JT-9060 UV-TM different from a standard 9060 UV printer?
A: The biggest advantage is its 400mm high-clearance printing capability, allowing users to print on large, thick, and irregular-shaped products beyond the limits of conventional UV flatbed printers.
Q2. What products can be printed with this UV printer?
A: The JT-9060 UV-TM can print luggage, packaging boxes, acrylic products, glass panels, wooden products, metal plates, industrial parts, promotional products, and customized gifts.
Q3. Can this UV printer print white ink and varnish?
A: Yes. It supports CMYK + White + Varnish printing, enabling vibrant colors, glossy finishing, and embossed 3D texture effects.
Q4. Which printheads are available for this machine?
A: The printer supports Epson XP600, i1600-U1, and i3200-U1 printhead configurations according to different production requirements.
Q5. Is JT-9060 UV-TM suitable for industrial production?
A: Yes. The heavy-duty structure, precision motion system, stable ink supply, and multi-printhead configuration make it suitable for continuous commercial and industrial production.
Q6. What industries commonly use this UV flatbed printer?
A: It is widely used in packaging, advertising, promotional products, industrial manufacturing, customized gifts, signage, and product decoration industries.
