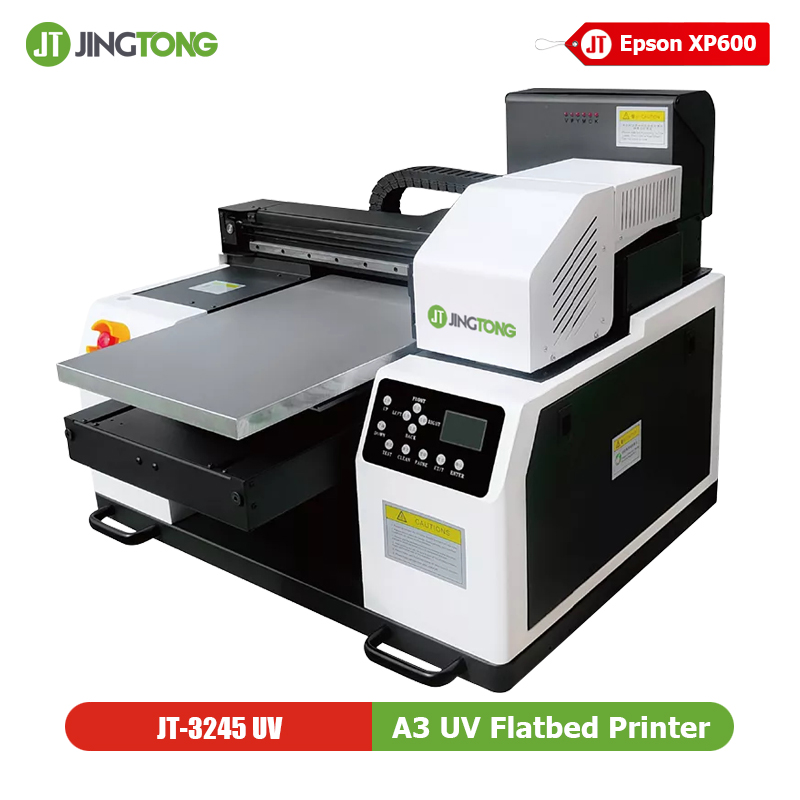

Advanced 3245 UV Flatbed Printer A3 UV Printing Machine Direct Print to Substrate

Advanced 3245 UV Flatbed Printer A3 UV Printing Machine Direct Print to Substrate

The Jingtong 3245 UV Printer is a compact A3 UV flatbed printer designed for product customization, promotional items and short-run production. With a 320×450mm print area, dual Epson XP600 printheads and CMYK+W+V UV printing, it delivers vibrant colors, white underbase and gloss effects directly onto a wide range of substrates. Supporting objects up to 100mm thick, it offers flexible printing possibilities for print shops, gift businesses and customized product manufacturers.

Technical Highlights:

Print Head: Dual Epson XP600 Printhead

Max Print Size: 320mm*450mm

Max Print Speed: 3 m2/h

Ink Type: ECO-UV Curing Ink

Print Mode: C, M,Y, K+W / C, M,Y, K+ W+Varnish

Opportunities & Applications

Specification

Technical Details

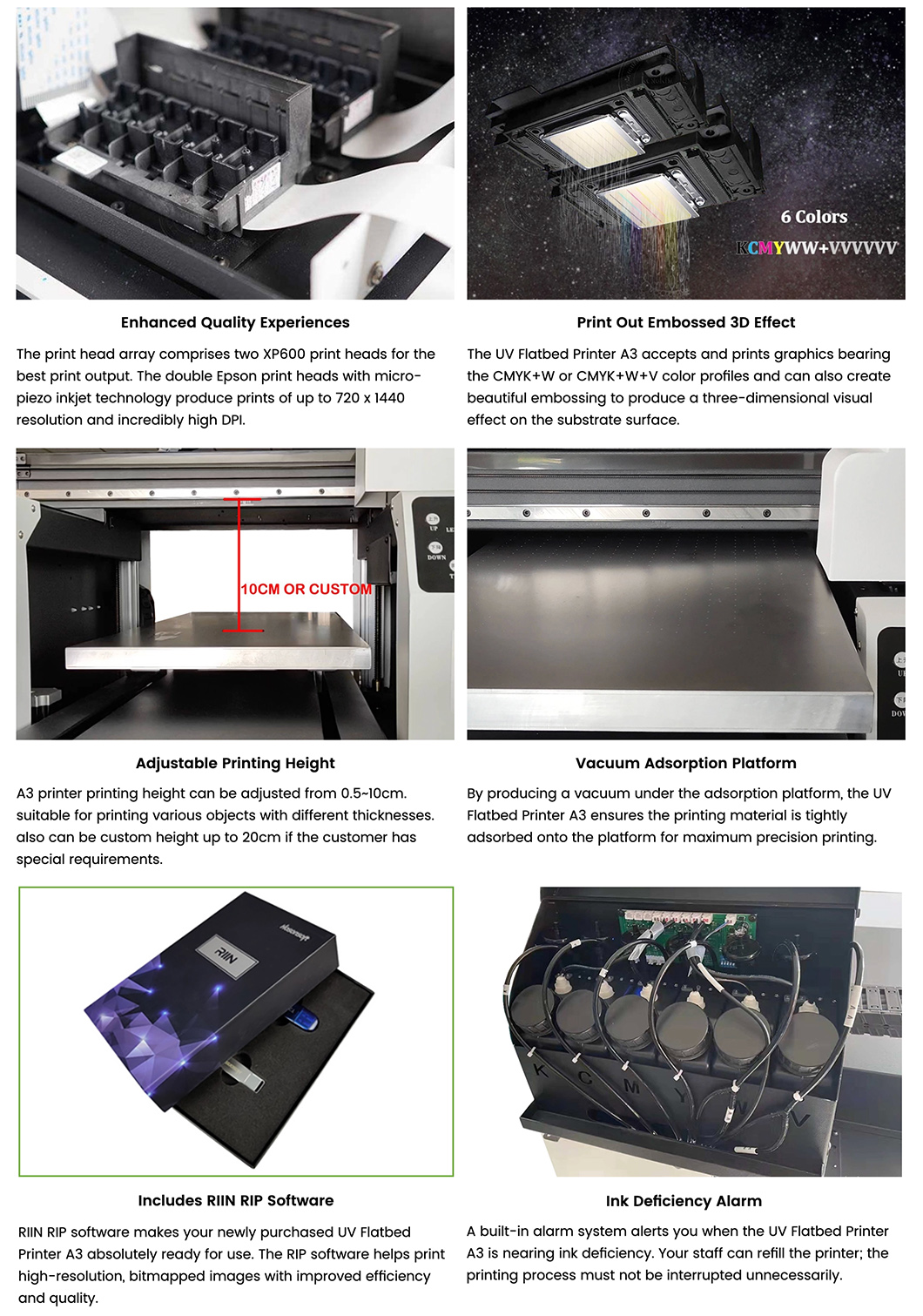

Features

- Multi-Layer Printing – Simultaneous white, color, and varnish printing, realizing two- or three-layer printing mode.

- Hybrid for Both Roll and Rigid Media – Enables endless possibilities and broadens print applications.

- Printable Cylindrical Objects – With a fixture/fixer, it can print cylindrical bottle items.

- UV Lamp Protective Cover – Light-shielding, dust-proof, touch-proof, and protects eyes from UV light.

- 100mm Maximum Printing Thickness – Infrared automatically detects and adjusts to media height.

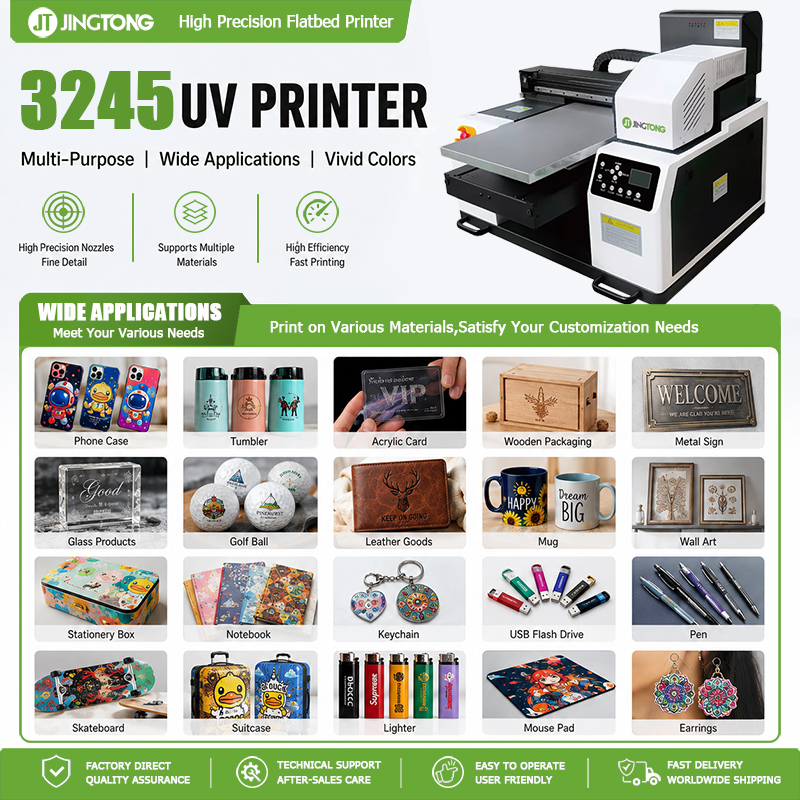

Applications of Jingtong 3245 UV Flatbed Printer

The A3 UV Printer 3245 is designed for phone case printing, acrylic products, promotional gifts, nameplates, signage, packaging prototypes, wooden products, glass decoration, metal plates, leather goods and personalized merchandise. It is well suited to custom printing businesses, advertising shops, gift manufacturers and short-run production.

FAQ

1. Is the 3245 UV printer really A3 size?

It is generally positioned as an A3-format UV printer, but its 320×450mm print area is slightly larger than the standard A3 paper size of 297×420mm. This provides additional working space for customized products.

2. Can it print directly on phone cases?

Yes. The printer is suitable for compatible phone cases and other flat accessories. The exact adhesion performance depends on the case material and surface treatment, so testing the actual product before production is recommended.

3. What is the difference between CMYK+W and CMYK+W+V?

CMYK produces the main full-color image, while white ink provides an underbase for dark or transparent materials. Varnish can add gloss, highlights or raised decorative effects to selected areas.

4. Can it print on uneven or thick products?

The adjustable print height allows the machine to accommodate products with different thicknesses. However, the product should remain within the machine’s supported height range and have a suitable printing surface.

5. Does UV printing require pretreatment?

Not always. Many substrates can be printed directly, but ink adhesion varies significantly between materials and surface finishes. Difficult materials may require primer, coating or other surface treatment.

6. Is this UV printer suitable for personalized and short-run orders?

Yes. UV flatbed printing does not require traditional plates or screens, making the 3245 UV printer suitable for frequent design changes, personalized products, samples and small production runs. This is one of the main advantages of compact UV printing over conventional processes.
