60CM Digital T Shirt Printing Machine Commercial Direct to Film Printer with XP600 Printhead

60CM Digital T Shirt Printing Machine Commercial Direct to Film Printer with XP600 Printhead

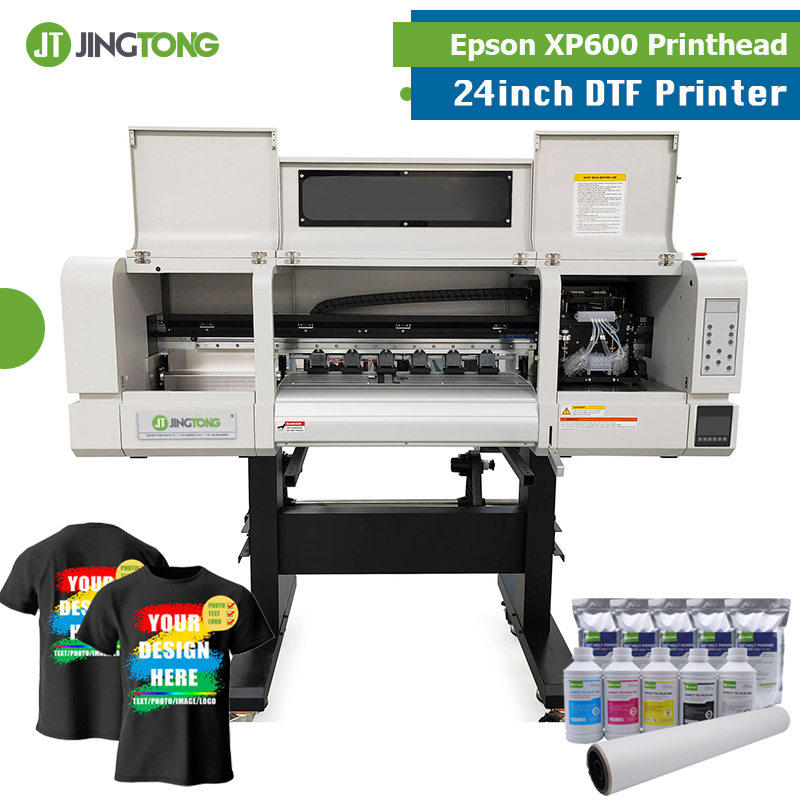

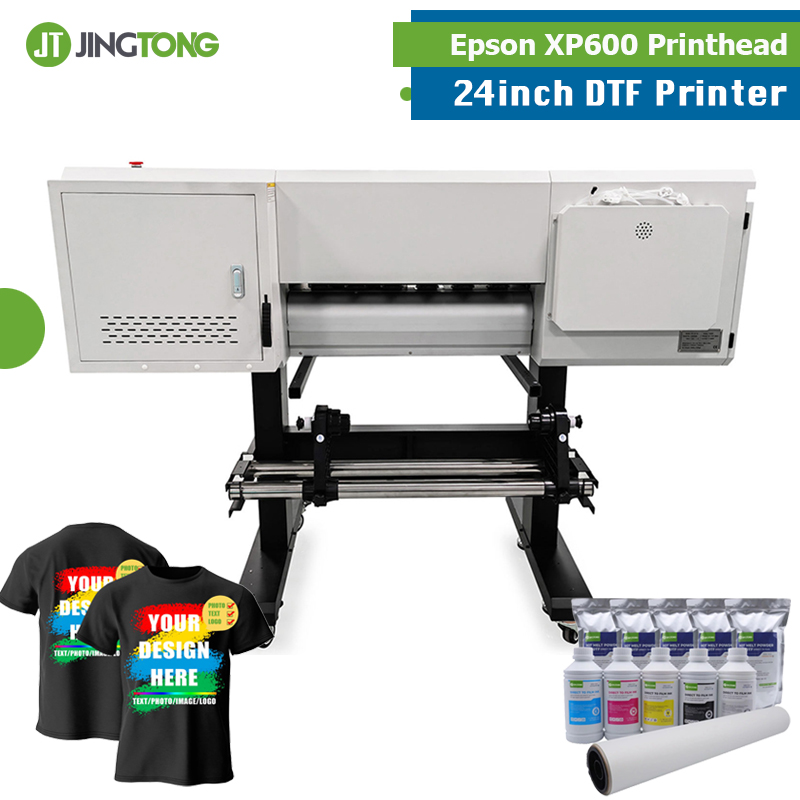

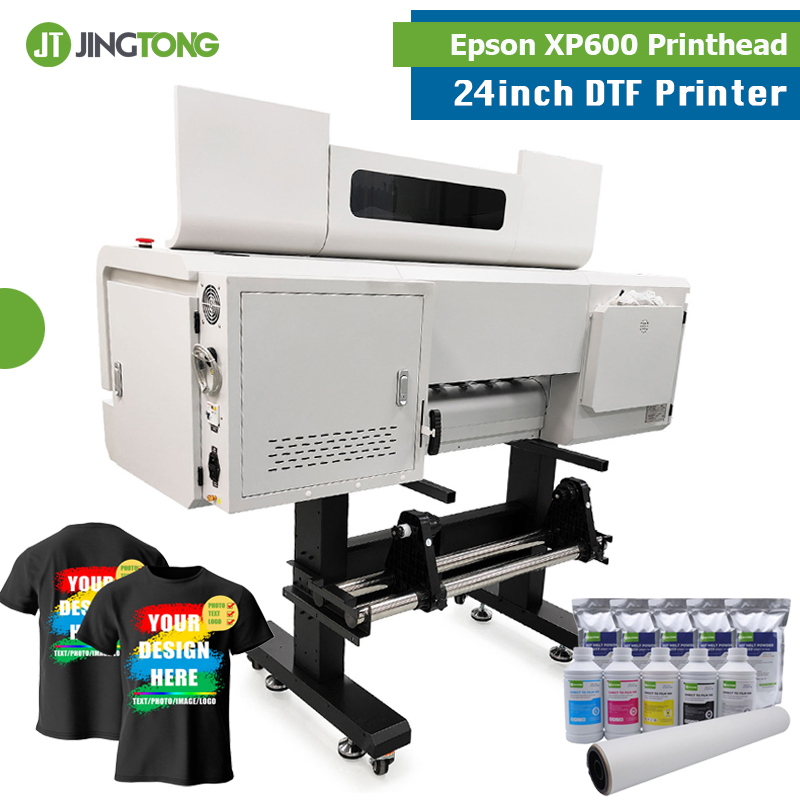

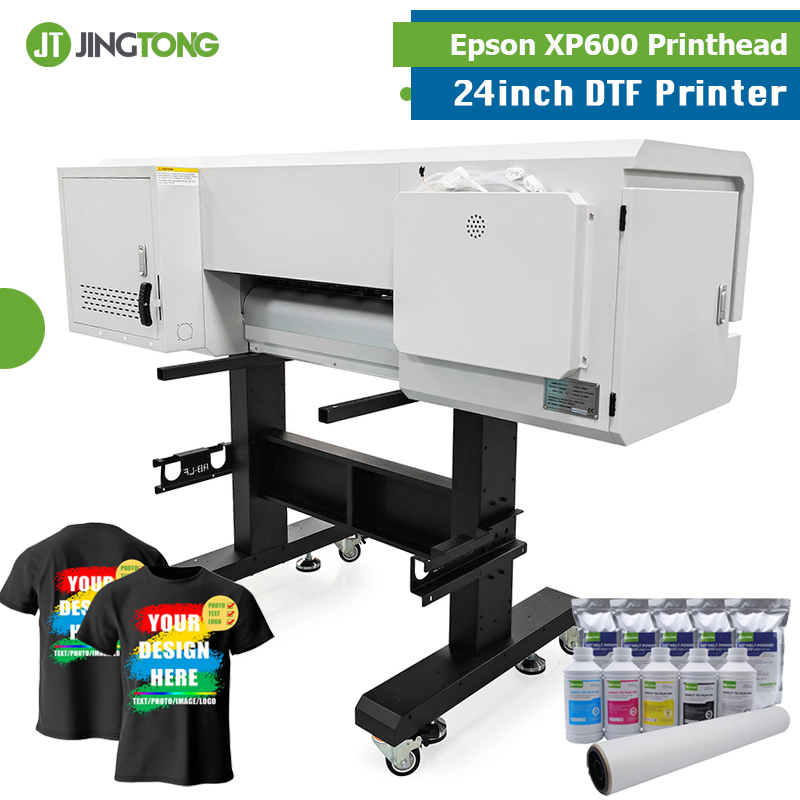

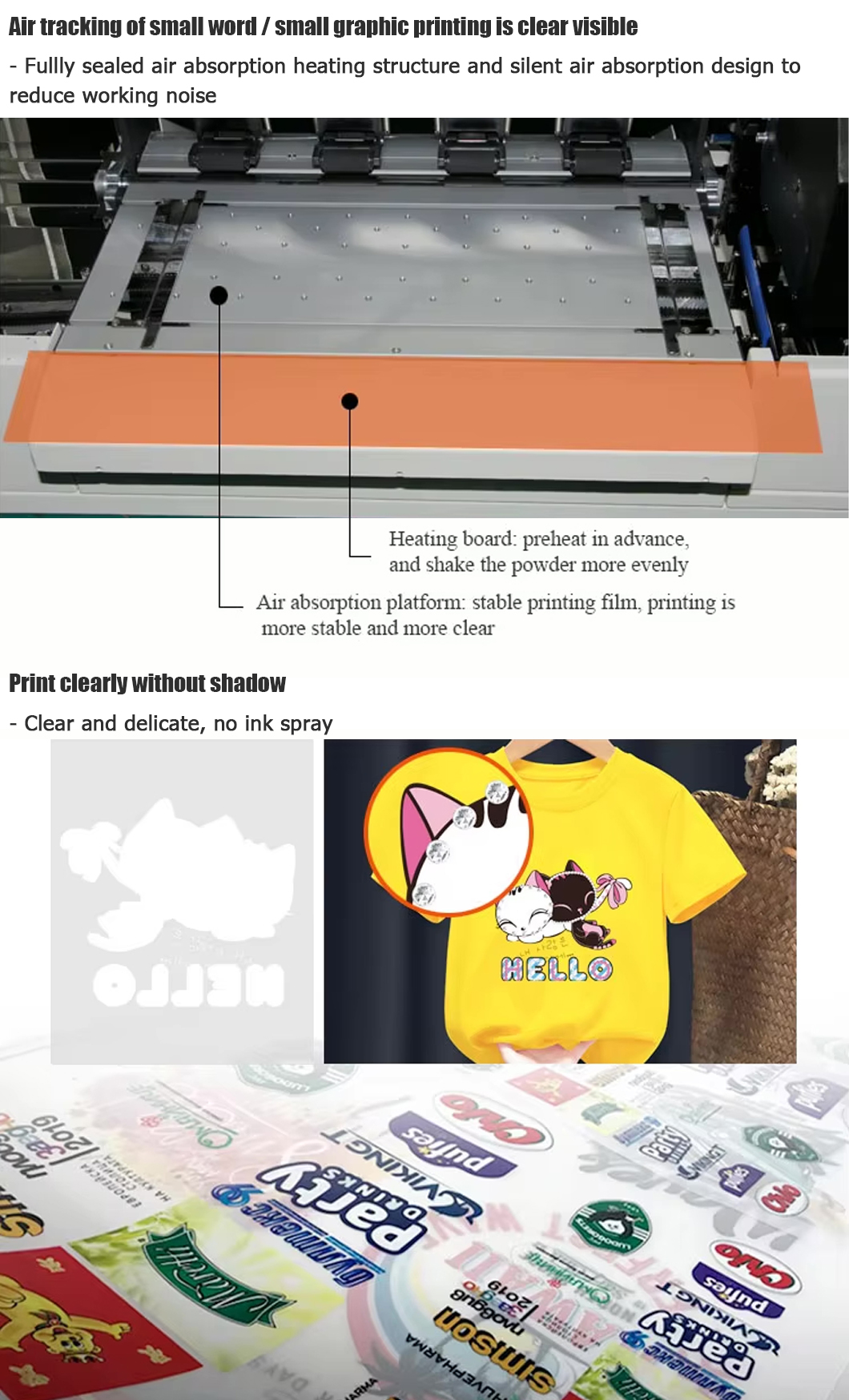

The Jingtong dual Epson XP600 printhead 24inch DTF printer gives you vivid color printing capabilities. In addition, you'll get a reel printing width of 20-600mm with unlimited length. Print up to 5-7 square meters per hour for greater productivity without compromising quality. The printer also features an adsorption platform that prevents the nozzle from scratching the DTF film and simultaneously stabilizing the film while it works.

The Jingtong Intelligent Technology Dual Head printing machine gives you the ability to connect an automatic powder shaker for greater productivity and scalability. Now you can reduce your labor costs and improve efficiencies, allowing you to boost your bottom line.

Technical Highlights:

Print Head: 2-4 * Epson XP600 printheads.

Print Size: 24in (620mm) maximum print width.

Print Speed: 4 pass: 22m²/ h; 6 pass: 18m²/ h; 8 pass: 12m²/ h

Printing Resolution: 720 x 1200dpi; 720 x 1800dpi; 720 x 2400dpi (4Pass, 6Pass, 8Pass)

Ink Type: C, M, Y, BK, W

Top Features:

- It is decked out with 2-4pcs Epson XP600 Printhead and a BYHX mainboard, high speed, high resolution, durable.. Give your designs a boost of clarity and a pop of color.

- The DTF printer boasts a massive 1.5L Ink Tank. More printing, less refilling.

- 8-color white ink circulation system. Make sure every print is as vibrant as you imagined.

Constant tension paper feeding: to ensure that the white color is in place and accurate, and the paper does not run off when shaking.

- Front and rear platform heating, paper lack induction.

- Integrated lifting maintenance station, with timing flashing function, better maintenance of the nozzle.

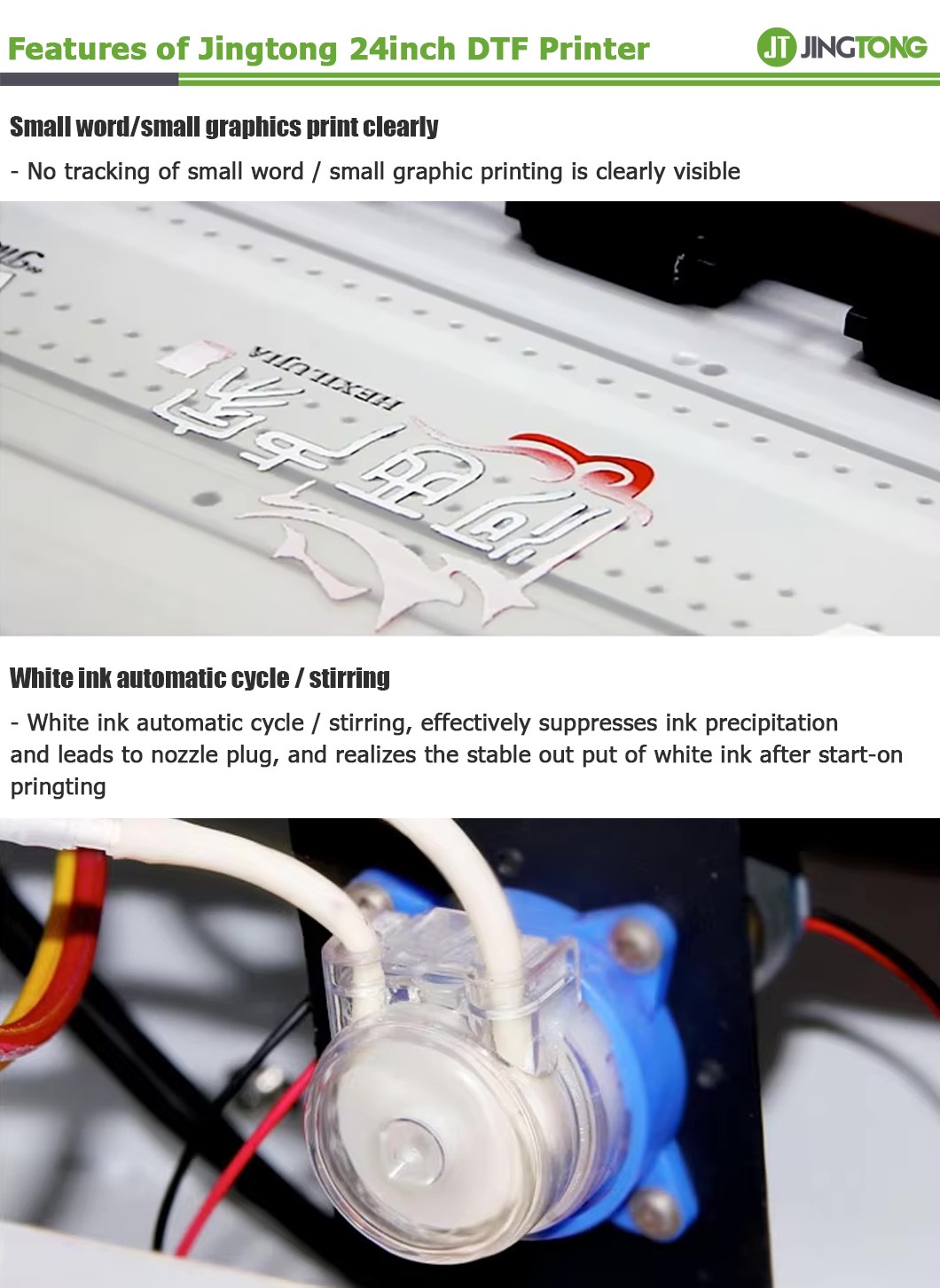

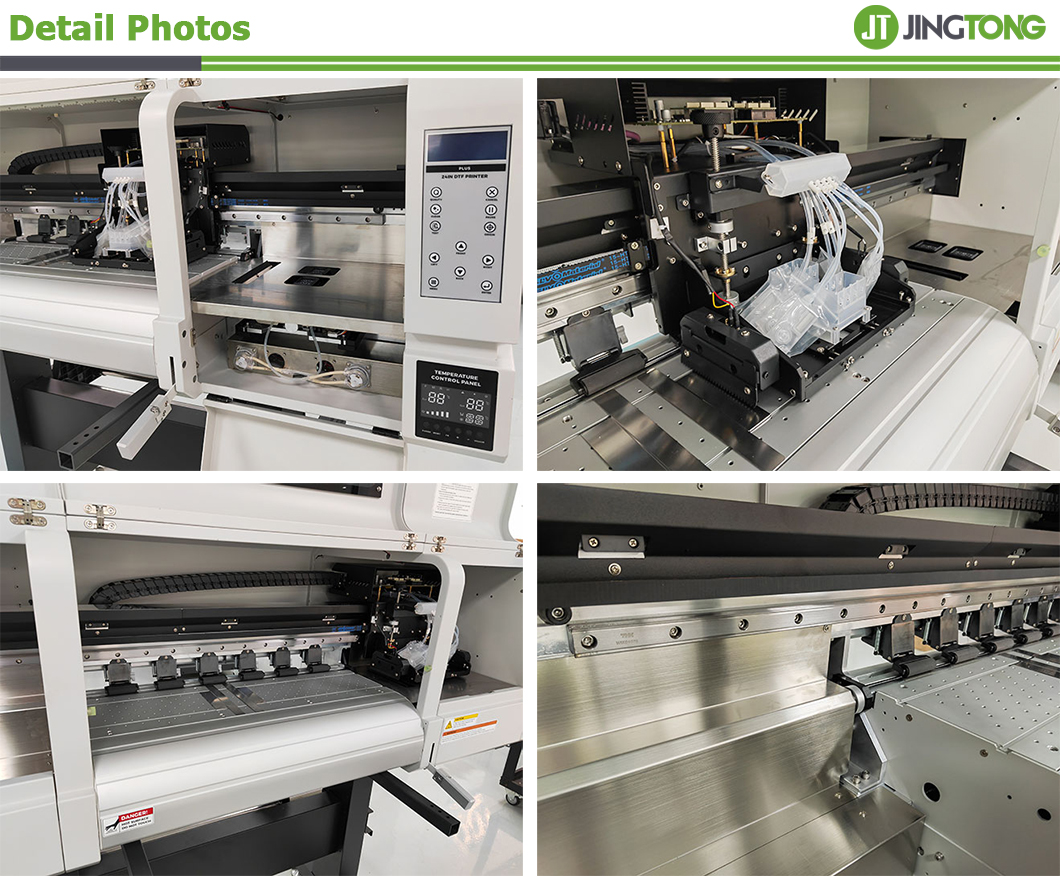

- White ink ribbon circulation stirring Carmel stepper peristaltic pump, ink path and paper feeding system are controlled by PLC, and pressure control white ink, stable and continuous ink supply Industrial-grade processing long beam, Japanese THK guide rail, integrated heavy-duty tripod.

- Whether you're printing tees for your startup or crafting custom prints at home, the Jingtong 24″ DTF Printer is your new best friend. It's reliable, efficient, and ready to take your printing to the next level.

Specification

Machine Maintenance Instructions:

For the ink cap, scraper and lifting plate clean, must be kept clean all the time.

Need to put some lubricating oil on the trolley track for every half a month or for every month.

Grating need be wiped with dry clean fabric for every month.

Need to put some water into the ink stack cap while the the machine is printing. It greatly keeps the ink cap wet to prevent agglomeration and the print head blocked.

It is best to turn on the machine in two or three days if you do not use the machine for long time. And print the test strip or print some tasks to prevent the print head blocked.

The machine need to be keeping cleaned all the time. If can keep like a new machine that will be better.

Working Process and Application of Jingtong DTF Printer

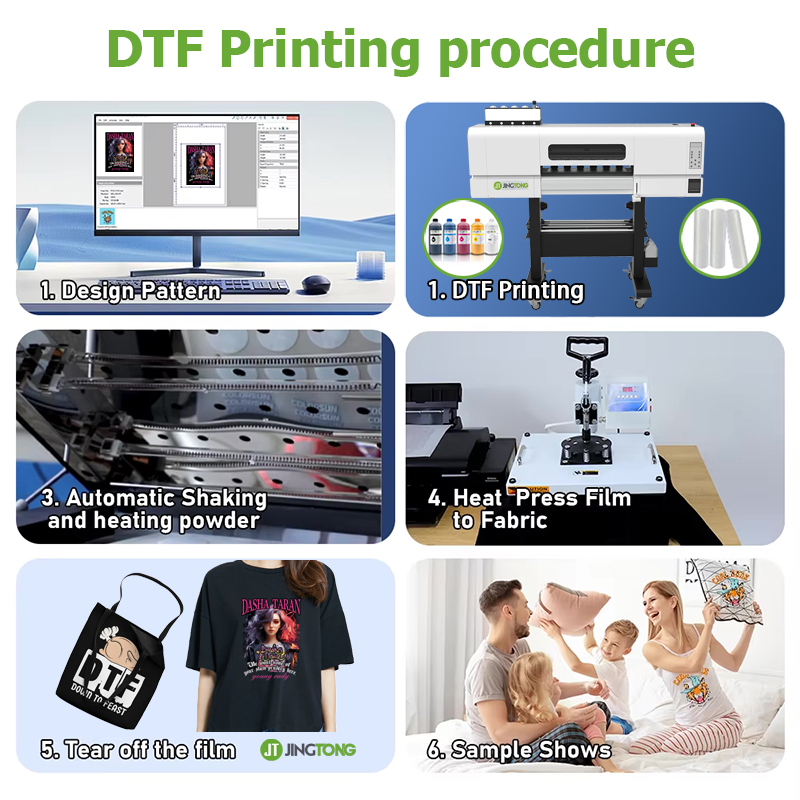

T Shirt (DTF) Printing Process

- Design Pattern Spot Color Channel

Create spot color channels using a variety of design applications.

- RIP Jobs

Utilize RIP software; spot color and color are RIP out.

- Printing, Dusting & Drying Processing

Can quickly realize the process of printing, dusting, shaking powder, drying, the whole process of automation, the temperature can be adjusted according to the printing situation in a timely manner.

- Heat Transfer

The rolls of printed PET film are cut, then transferred and embossed using a heat press, and finally the film is torn off to get a printed garment.

DTF Applications

The 600mm size was the most popular in the first two years of the DTF printer boom. 2 Epson I3200 printheads are available for reliable performance and low maintenance. Standard printing, fluorescent printing, and high-speed printing are available. The fluorescent print can be printed in 5 colors, widely used in family parent-child sets, school bags or T-shirts, and other garment fabrics.
